120 volt outdoor wall light

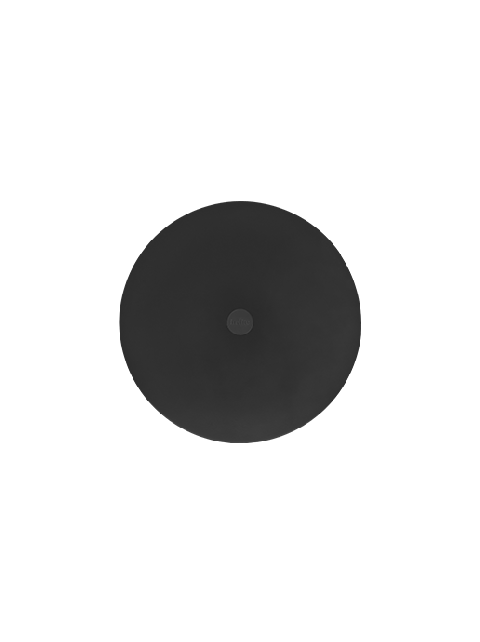

DISC WALL 100-230V

Be the first to review this product

The DISC WALL 100-230V is an attractive wall light. The fixture produces a diffuse lighting effect on all sides and can be connected to 230V power point.

  • Produces a diffuse lighting effect on all sides
  • Suitable for installation on a wall using a 230V power outlet
  • Dimmable using an LED dimmer (not included, available at select home improvement centers)

In stock

Art. nr.
DISC_WALL_100-230V
Go to store locator

Included
In the box
Included
  • PART NO. 5: 1x DISC WALL 100-230V
  • 200 mm Fixture cable
  • PART NO. 5: 1x Driver
  • 3x PART NO. 5: 1x Cable connector
  • PART NO. 5: 4x Screw
  • PART NO. 4: 1x DISC BASE
  • 2x PART NO. 4: 2x Screw
  • PART NO.4: 2x Nylon plug
  • PART NO. 4: Torx wrench

Product overview
Product Details

The DISC WALL 100-230V is a wall light with a stylish and contemporary design. The DISC WALL 100-230V illuminates walls with a diffuse lighting effect on all sides. This fixture can be connected directly to a 100-230V power point using the 230V LED driver provided. It can also be made dimmable using an LED dimmer (not included).

This product is multi-component and the components are packaged separately.

Specs

Art. nr.
DISC_WALL_100-230V
Color
Black
Height mm
36
Height inch
1.42
Diameter Inch
7.87
Diameter mm
200
Housing
Aluminium FCBV
Voltage
120 V
Electric potential
4,7VA
Power
4,5W
Light source
LED
Lighting direction
Ambient
Lighting reach ft
9.84
Lighting reach m
3
Burn time
25000
Color temperature
2900
CRI
98
Net Luminous Flux
246lm
Energy label
G
IP-class
55
Application
Overhang, Pergola
Luminous Efficacy
55lm/W
Features
Dimmable

Installation instructions

Installation instructions
The DISC WALL 100-230V can be easily installed on a wall using the DISC BASE and the installation screws provided and is equipped with a dimmable 100-230V LED driver. An LED dimmer (not included) must be installed to use the dimming function. The DISC WALL 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.
Download manual
