- 1x EASY LOCK
- 60 cm Fixture cable
- Baffle plate
This small ground light in dark gray is perfect as subtle indication lighting for along your driveway, walkway, duckboards or jetty.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
Tip: Think of an extension cable
- Produces a subtle radiating light on all sides
- Designed for illuminating the edges of a driveway, walkway or deck
- Drive-over
Installation advice:
Every 1.5 to 2 meters a PUCK 22 DARK
In stock
Art. nr.
10104175
In the box
Included
Product overview
Product Details

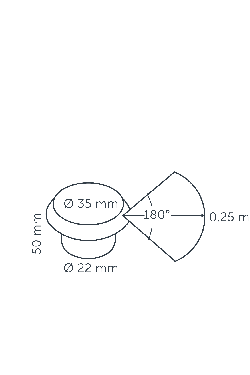

The PUCK 22 Dark Grey small ground light is perfect as subtle indication lighting for along your driveway, walkway, duckboards or jetty. The PUCK 22 DARK GREY has a diameter of 22 mm and an anodized aluminum cap in dark gray. The light radiates from the ground lights on the side, making it visible from a long distance. The non-glaring light also makes the PUCK 22 perfect for creating ambiance. The PUCK series is available in two different formats and colors: PUCK (Dark) has a diameter of 60 mm, while PUCK 22 (Dark) has a diameter of 22 mm.
Specs
Art. nr.
10104175
Color
Black
EAN
8717051004346
Height mm
37
Height inch
1.46
Mounting depth mm
55
Mounting depth inch
2.17
Diameter Inch
1.38
Diameter mm
35
Housing
Polycarbonate
Ring/Cover plate
Aluminum
Voltage
12v
Electric potential
0.6VA
Power
0.6W
Light source
LED
Lighting direction
Ambient
Lighting reach ft
0.82
Lighting reach m
0.25
Burn time
25000
Color temperature
2900
CRI
96
Net Luminous Flux
3lm
Energy label
G
IP-class
67
Application
Driveway, Deck
Processing
Concrete, Grass, Gravel, Natural stone, Wood
Luminous Efficacy
5lm/W
Features
Drive-over
Installation instructions
Installation instructions
You process this soil pot in a hole in wood (wood drill) or stone (cooled diamond drill) with a diameter of 22 mm. A dealer or gardener can take care of this for you.
Attention! Install the fixture only in a straight drilled hole in the right size to ensure that the spot is properly clamped without damaging the house.
Handy tapping plate
PUCK 22 (DARK) comes with a tapping plate (60x60x5 mm). You use it during assembly to prevent damage to the anodized cap.
Recommended accessories
-
SPIKE 22Ground pin 22 fixtures
