Outdoor ground spotlight - Ø 60 mm

BIG FLUX ASYMMETRIC 12V Pearl Grey

The BIG FLUX ASYMMETRIC has been specially developed to create unique lighting effects for pergolas, wide recesses or passageways.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable

Produces a wide strip of light
Designed for illuminating walls and pergolas
Drive-over

In stock

Art. nr.

BIG_FLUX_ASYMMETRIC_PEARL_GREY

Product overview

Product Details

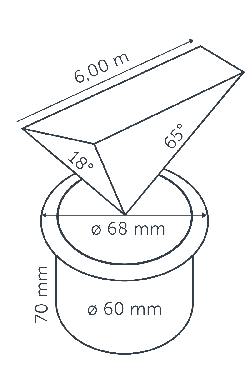

The BIG FLUX ASYMMETRIC produces two different lighting effects with its asymmetric lens. One of the lighting effects is like a wide fan, which has a light angle of 65 degrees and light distribution of 6 meters. However, when the fixture is turned 90 degrees, a narrow strip is created which has a light angle of 18 degrees and light distribution of 6 meters high. This means the fixture creates unique lighting effects for pergolas, wide recesses or passageways. The BIG FLUX ASYMMETRIC can also be perfectly combined with the SPIKE accessory. This ground pin makes it easy to install the BIG FLUX ASYMMETRIC in loose surfaces like soil, gravel or lawn.

This fixture is a combination of BIG FLUX ASYMMETRIC and RING 68 PEARL GREY. RING 68 PEARL GREY is made of high-quality anodized aluminum.

This product is multi-component and the components are packaged separately.

Important: the BIG FLUX ASYMMETRIC can be installed in the BOX-100 accessory. The BIG FLUX NARROW is suitable for use in accessory BOX 1.

Specs

Art. nr.

BIG_FLUX_ASYMMETRIC_PEARL_GREY

Color

Pearl Grey

Height mm

Height inch

2.52

Mounting depth mm

Mounting depth inch

2.76

Diameter Inch

2.68

Diameter mm

Housing

Polycarbonate

Ring/Cover plate

Aluminum

Voltage

12v

Electric potential

4.2VA

Power

Light source

LED

Lighting direction

Upwards

Lighting reach ft

19.69

Lighting reach m

Burning time

25000

Color temperature

3100

CRI

Net Luminous Flux

258lm

Energy label

IP-class

Application

Tree, Roof, Hedge, House

Processing

Concrete, Grass, Wood

Luminous Efficacy

86lm/W

Features

Drive-over

Installation instructions

This ground light is installed inside a hole in wood (using a wood drill) or stone (using a water-cooled diamond drill) with a diameter of 60 mm. An in-lite dealer or gardener can do this for you. Important: this fixture must be installed in a straight drill hole of the right size to ensure that it fits snugly without damaging the casing of the ground light. The BIG FLUX ASYMMETRIC features a stainless steel cup. The cup is a stainless steel ring with spring-loaded edges, which means the spotlight can be installed easily and voltage-free. The spotlight and cup are simply pushed inside the hole. No hammer needed. The cup’s spring-loaded edges make sure the spotlight is always installed snugly. The spotlight can also be removed easily without damage. The cup accompanies the BIG FLUX ASYMMETRIC as standard and is not available separately. If you want to install the BIG FLUX ASYMMETRIC in loose surfaces like soil, gravel or lawn, this is possible using the SPIKE accessory. Place the BIG FLUX ASYMMETRIC inside the SPIKE and then insert into the ground.

Download manual
