- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Screw
- 2x Nylon plug
- 1x Torx wrench
The LIV WALL wall light is a warm silver coated aluminum fixture with a narrow silver-colored ring. Produces uniform, warm white ambient light.
The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.
Tip: Think of an extension cable
- Produces a warm, mood light on all sides
- Designed for illuminating a fence or wall
- Can be connected to 230 volt using accessory
Installation advice:
A LIV WALL every 2 to 2½ meters at a height of 1.4 to 1.6 meters
In stock
Art. nr.
10301100
In the box
Included
Product overview
Product Details
The LIV WALL wall light is a warm silver coated aluminum fixture with a narrow silver-colored ring. Produces uniform, warm white ambient light. Suitable for illuminating fences, walls and garage (doors). Can also be connected to 230V line voltage using the separately available 10W transformer (CB-010E).
Specs
Art. nr.
10301100
Color
Rosé Silver

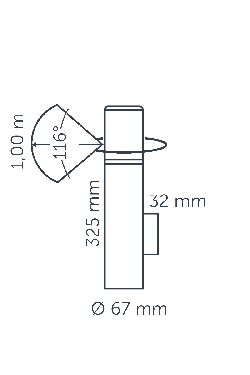

Height mm
325
Width mm
99
Height inch
12.8
Width inch
3.9
Mounting depth mm
0
Diameter Inch
2.64
Diameter mm
67
Housing
Aluminium
Voltage
12v
Electric potential
2.5VA
Power
1.5W
Light source
LED
Lighting direction
Ambient
Lighting reach ft
3.28
Lighting reach m
1
Burning time
25000
Color temperature
2750
CRI
95
Net Luminous Flux
60lm
Energy label
G
IP-class
55
Application
Schutting, Roof, House
Luminous Efficacy
40lm/W
Installation instructions
Installation instructions
Mount using the included screws and plugs. Can also be connected to 230V line voltage using the separately available CB-010E mini-transformer. Caution! The 230V connection must be made by a licensed electrician.
