ACE DOWN 100-230V Corten

The ACE DOWN 100-230V wall light produces a targeted beam of light and can be installed on a wall or fence.

  • Produces a focused downward light
  • Designed for illuminating a fence or wall
  • Connects directly to 230 volt
Installation advice:

An ACE DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

Out of stock
SKU
10302120
Go to store locator
Details

The ACE DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light downwards. The width of the light bundles provided by the ACE DOWN 100-230V can be adjusted using the separately available SHUTTER 2.

The special finish on the Corten products is achieved through a manual process of coating, sanding, acidifying and rinsing. This makes every in-lite Corten fixture unique and may cause differences between the various products in terms of color, texture and appearance.

More Information

Product Details

Product Details
ColorCorten

General

General
EAN8717051005336

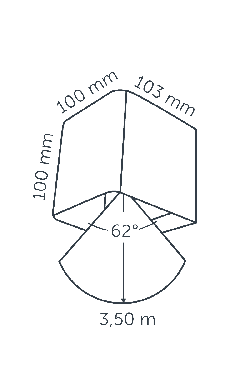

Height mm100
Length mm103
Width mm100
Height inch3.94
Length inch4.06
Width inch3.94
HousingAluminium
Voltage100-230V
Power4.5W
Electric potential11,8VA
Light sourceLED
Burning time25000
Lighting directionDownwards
Lighting reach m3.5
Lighting reach ft11.48
Color temperature 3000
CRI94
Net Luminous Flux186lm
Luminous Efficacy41lm/W
IP-class55
Energy labelA
ApplicationFence, House
Installation instructionsThe ACE DOWN 100-230V can only be connected to the regular power supply and cannot be operated using an in-lite HUB-50/HUB-100 or SMART HUB-150 12V transformer. Contact an electrician or professional for installation.
Installation Instructions and Downloads
The ACE DOWN 100-230V can only be connected to the regular power supply and cannot be operated using an in-lite HUB-50/HUB-100 or SMART HUB-150 12V transformer. Contact an electrician or professional for installation.
