Wall light - ↨ 100mm

ACE DOWN Rose Silver

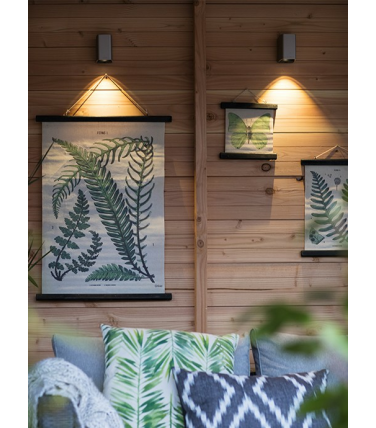

ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable
A high-quality FCBV coating in the colour Rosé Silver. Combines well with other luminaires in the same colour. Also available with UP-DOWN lighting.
  • Produces a focused downward light
  • Designed for illuminating a fence or wall
  • Lighting effect can be adjusted with several accessories
Installation advice:

An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

In stock
Art. nr.
10301800

IN THE PACKAGE
INCLUDED IN PACKAGE

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Nylon plug
  • 2x Screw
  • 1x Torx wrench

Product overview
Product Details
ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

Specs

Art. nr.
10301800
Application
Canopy , Facade, Fence/wall, House
Mounting depth (inch)
0
Recessed depth (mm)
0
CRI
91
Color
Rose Silver
EAN code
8717051003530
Energy label
G
Height (inch)
3.937
Height (mm)
100
IP class
55
Length (inch)
3.7402
Length (mm)
95
Light direction
Downward
Light type
Direct
Efficiency (Lumen/Watt)
58
Net luminous flux (Lumen)
173
Order unit
6
Power [W]
3
Article group
Wall
Voltage
12 volt
VA value
5.3
Width (inch)
2.5197
Width (mm)
64
Color temperature
3000
Luminous intensity [Cd]
196
Power factor
0.57

Installation instructions

Installation advice
Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
