(EU) 230 volt outdoor wall light (US/CA) 120 volt outdoor wall light

ACE UP-DOWN 100-230V Rosé Silver

The ACE UP-DOWN 100-230V wall light may only be connected to line voltage.

  • Produces a focused upward and downward light
  • Designed for illuminating an outside wall
  • Connects directly to 230 volt
Installation advice:

An ACE UP DOWN 100-230 V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

  • Corten
In stock
Art. nr.
10302000
Product overview
Specs

The ACE UP-DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light both upwards and downwards. The width of the light bundles provided by the ACE UP-DOWN can be adjusted using the separately available SHUTTER 1.


Specs

Art. nr.
10302000
Color
Rosé Silver
EAN
8717051003578

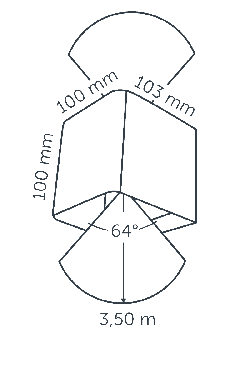

Length mm
103
Height mm
100
Width mm
100
Length inch
4.06
Height inch
3.94
Width inch
3.94
Mounting depth mm
0
Housing
Aluminium
Voltage
120 V
Electric potential
20VA
Power
8.5W
Light source
LED
Lighting direction
Downwards and upwards
Lighting reach ft
11.48
Lighting reach m
3.5
Burn time
25000
Color temperature
3000
CRI
92
Net Luminous Flux
346lm
Energy label
G
IP-class
55
Application
Schutting, Roof, House
Luminous Efficacy
41lm/W

Installation instructions

Installation instructions
The ACE UP-DOWN 100-230V wall fixture may only be connected to a 230V power supply. Follow the instructions in the manual and the special installation leaflet*. *ACE UP-DOWN 100-230V may only be installed by a licensed electrical contractor.
