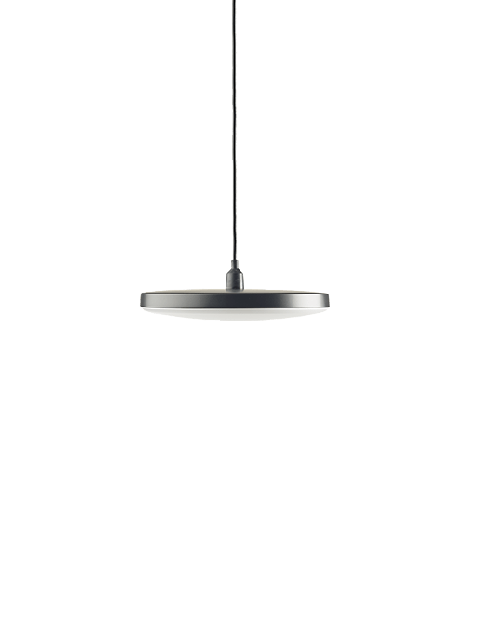

DISC PENDANT 100-230V is a particularly stylish pendant light from the DISC concept. Hang DISC PENDANT 100-230V preferably in a canopy. DISC PENDANT 100-230V is dimmable via an integrated dimmer that can be operated by hand movements.
It is also possible to install two or three DISC PENDANT 100-230V fixtures with DISC PENDANT 100-230V DUO and DISC PENDANT 100-230V TRIPLE.
Human Dimming; dimming by hand movement
Made of aluminum with FCBV coating in the color Black
DISC PENDANT 100-230V is a particularly stylish pendant light from the DISC concept. Hang DISC PENDANT 100-230V preferably in a canopy. DISC PENDANT 100-230V is dimmable via an integrated dimmer that can be operated by hand movements.
It is also possible to install two or three DISC PENDANT 100-230V fixtures with DISC PENDANT 100-230V DUO and DISC PENDANT 100-230V TRIPLE.
Specs
Art. nr.
99080000
Application
Canopy, Pergola
CRI
98
Diameter (inch)
7.9
Diameter (mm)
200
Color
Black
Energy label
G
Height (inch)
1.4
Height (mm)
36
IP class
55
Light direction
Downward
Efficiency (Lumen/Watt)
45
Net luminous flux (Lumen)
216
Power [W]
4.5
Article group
Ceiling lights
Voltage
120 volt
VA value
11.8
Color temperature
2900
Material finishing/coating
FCBV
Kilowatt hour
5
Luminous intensity [Cd]
73.9
Power factor
0.40
Installation instructions
Installation advice
Install DISC PENDANT 100-230V with the supplied BASE 1 to an existing 230V power point in the ceiling.
<br /><br />
If multiple fixtures are installed, it is important that the fixtures are mounted at different heights and free from each other. Use the supplied strain reliefs for this purpose.
<br /><br />
Hang DISC PENDANT 100-230V fixtures preferably in a wind-free spot.
<br /><br />
DISC PENDANT (100-230V) can be perfectly combined with other fixtures from the DISC concept, but also with PUCK, HALO and other in-lite fixtures in the color Black or Dark Grey anodized aluminum.
