Recessed light - Ø 22mm/0.87"

HYVE 22

This subtle 22 mm diameter fixture includes a stainless steel ring.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
  • Produces an eye-catching yet attractive lighting effect
  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over
Installation advice:

A HYVE 22 RVS every 1½ to 2 meters

Art. nr.
10104050

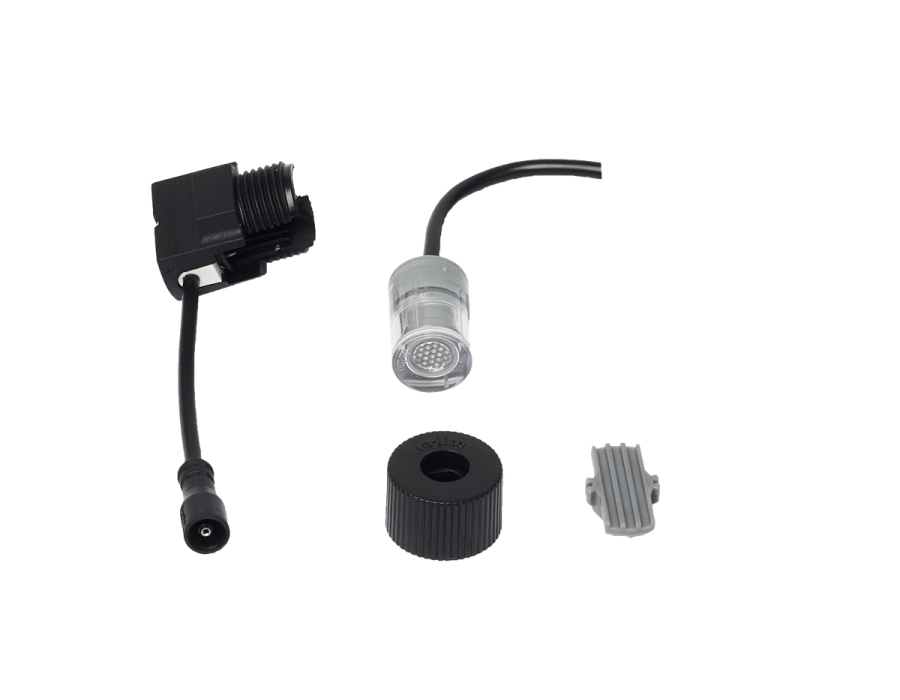

IN THE PACKAGE
INCLUDED IN PACKAGE

  • 1x EASY LOCK
  • 60 cm Fixture cable

Product overview
Product Details
This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.

Specs

Art. nr.
10104050
Application
Driveway, Path, Patio, Stairs
Mounting depth (inch)
1.9685
Recessed depth (mm)
50
CRI
95
Diameter (inch)
0.8661
Diameter (mm)
22
EAN code
8717051003486
Energy label
G
Height (inch)
1.2598
Height (mm)
32
IP class
67
Light direction
Upward adjustment
Light type
Diffuse
Efficiency (Lumen/Watt)
10
Net luminous flux (Lumen)
2
Order unit
6
Power [W]
0.2
Processing
Concrete, Grass, Gravel, NaturalStone, Wood
Article group
Integrated
Voltage
12V
VA value
0.2
Color temperature
3100
Luminous intensity [Cd]
2.2
Power factor
1

Installation instructions

Installation advice
This subtle 22 mm diameter fixture includes a stainless steel ring. In the evening, the honeycomb structure of the lens produces an attractive, warm light that is not blinding. This makes the fixture perfect in, for example, stairs and decks. The HYVE 22 stainless steel beautifully combines with the other fixtures from the HYVE range.
