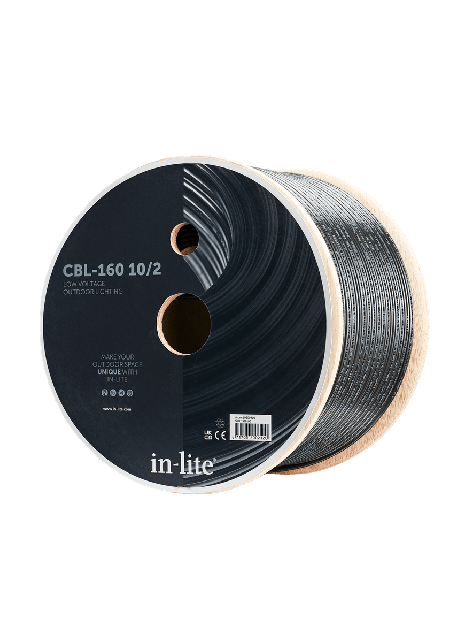

CBL-160 10/2
Low-voltage 10/2; 2-conductor cable.
160-meter cable.
160-meter cable.
- Comes as a bundle complete with CABLE CAPS
- Maximum cable length of 160 meters between fixture and transformer
- Can be installed directly under a layer or soil or paving
Art. nr.
10600400
Product overview
Product Details
Low voltage cable type 10/2; 2 core. Maximum cable length depends on the HUB.
HUB-50, HUB 100 and SMART HUB-150
Maximum cable length of 80 meters, laid linearly.
SMART HUB-300
Maximum cable length of 160 meters, linearly laid.
CABLE CAPS come standard with the transformer. For cable laying, see the system page at the top of the menu bar.
HUB-50, HUB 100 and SMART HUB-150
Maximum cable length of 80 meters, laid linearly.
SMART HUB-300
Maximum cable length of 160 meters, linearly laid.
CABLE CAPS come standard with the transformer. For cable laying, see the system page at the top of the menu bar.
Specs
Art. nr.
10600400
EAN code
8717051002120
Length (inch)
6299.2126
Length (mm)
160000
Order unit
1
Article group
Cables
Installation instructions
Installation advice
Roll out from the transformer. Can be used directly under the pavement or under a layer of soil. To lay the cable, see the system page at the top of the menu bar.
