The in-lite system operates at 12 volts (low voltage). This means that the 120 volts of power from the socket is converted to 12 volts by a transformer. This is a safe voltage, making in-lite lighting easy to connect and reposition by the consumer.

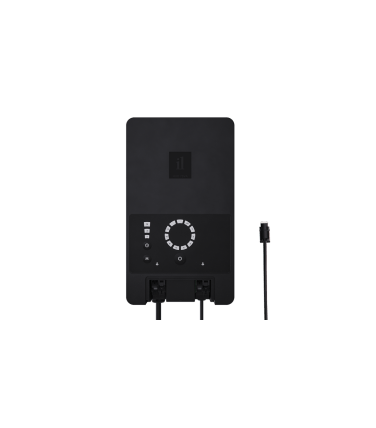

HUB-75
HUB-75 is one of the standard transformers in our range. A high-quality transformer, equipped with two jointly controllable lines. It can handle 75 VA, distributed over two cable outputs.
More HUB-75

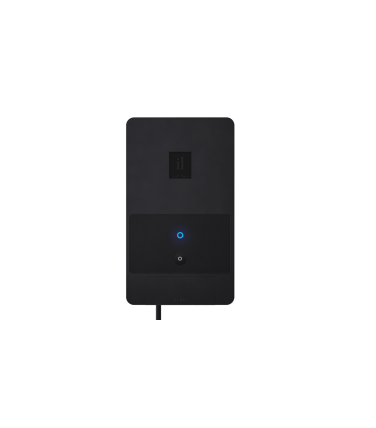

SMART HUB-75
SMART HUB-75 is one of the smart transformers in our range, easy to install and even easier to operate via the in-lite App. A high-quality transformer, equipped with two independently controllable lines. It can handle 75 VA, distributed over two cable outputs.
More SMART HUB-75
SMART HUB-150
SMART HUB-150 is operated using the in-lite app. You can connect up to 150VA in fixtures to the transformer, divided over three cable outlets if desired, each of which can be operated separately.
More SMART HUB-150
The HUB-75 and SMART HUB-75 are the standard transformers in our range. Both transformers can handle 75 VA, distributed over two cable outputs. Note: only the SMART HUB-75 can be controlled via the in-lite App; on the HUB-75, the outputs cannot be switched independently.
More HUB-75The SMART HUB-150 is operated using the in-lite app. You can connect up to 150VA in fixtures to the transformer, divided over three cable outlets if desired, each of which can be operated separately.
More SMART HUB-150
Protect your transformer
We recommend installing your SMART HUB-300, SMART HUB-150, HUB-75 or SMART HUB-75 in a covered location. If this isn’t possible, use a (SMART) HUB PROTECTOR to shield your transformer from all forms of precipitation. Our protectors are made of high-quality plastic and can withstand any weather conditions.

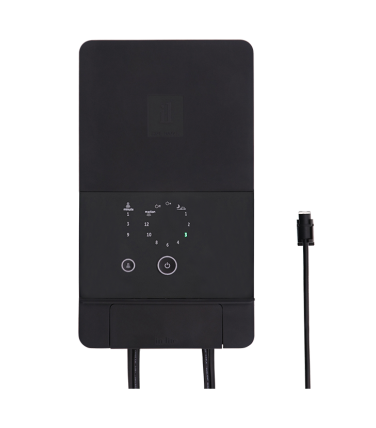

| HUB-75 | HUB-100 | SMART HUB-75 | SMART HUB-150 | SMART HUB-300 | ||
|---|---|---|---|---|---|---|
| Max. connection value | 75VA | 100VA | 75VA | 150VA | 300VA | |
| Control | Buttons | Buttons | App | App | App | |
| Cable outlets | 2 lines | 2 lines | 2 lines | 3 lines | 3 lines | |
| Max. connection value per cable outlet | 75 VA | 100 VA | 75 VA | 100 VA | 130 VA | |
| Cables can be controlled separately | × | × | √ | √ | √ | |
| Suitable for Smart fixtures | × | × | √ | √ | √ | |
| Suitable for home Automation systems | × | × | √ | √ | √ | |
| Max. cable length 14/2 | 131,23 ft/ 40 m | 131,23 ft/ 40 m | 131,23 ft/ 40 m | 131,23 ft/ 40 m | × | |
| Max. cable length 12/2 | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | × | |
| Max. cable length 10/2 | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | 524,93 ft / 160 m |
| HUB-75 | HUB-100 | SMART HUB-75 | SMART HUB-150 | SMART HUB-300 | |
|---|---|---|---|---|---|
| Max. connection value | 75 VA | 100 VA | 75 VA | 150 VA | 300 VA |
| Control | Buttons | Touchscreen | App | App | App |
| Cable outlets | 2 lines | 2 lines | 2 lines | 3 lines | 3 lines |
| Max. connection value per cable outlet | 75 VA | 100 VA | 75 VA | 100 VA | 130 VA |
| Cables can be controlled separately | × | × | √ | √ | √ |
| Suitable for Smart fixtures | × | × | √ | √ | √ |
| Suitable for home automation systems | × | × | √ | √ | √ |
| Max. cable length 14/2 | 131,23 ft / 40 m | 131,23 ft / 40 m | 131,23 ft / 40 m | 131,23 ft / 40 m | × |
| Max. cable length 12/2 | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | × |
| Max. cable length 10/2 | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m | 262,47 ft / 80 m |
524,93 ft / 160 m |
