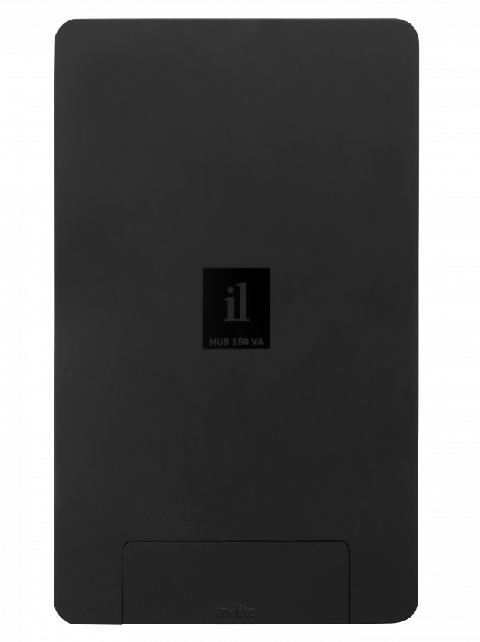

SMART HUB-150 120V
SMART HUB-150 has an installation rating of 150 VA and features three individually controllable cable inputs. With a Bluetooth Low Energy connection, this transformer can control the three cables individually via the in-lite app.
- Controlled by Bluetooth Low Energy and the in-lite app for iOS and Android
- Three cable inputs and control per cable is possible
- Tested and certified according to the requirements of TUV, (C)UL and KIWA (CE)
Installation advice:
Indoor mounting. For outdoor use PROTECTOR.
Art. nr.
10500610
Product overview
Product Details
With the introduction of the SMART HUB-150 and the in-lite app, a new era is dawning in which outdoor lighting is even more a part of our daily lives. The app for the SMART HUB-150 is developed for iOS and Android phones and allows you to set, store and share all the functionalities of the SMART HUB-150 with other in-lite app users.
SMART HUB-150 has an installation rating of 150 VA and features three individually controllable cable inputs. Using a Bluetooth Low Energy connection, this transformer can control the three cables individually via the in-lite app.
SMART HUB-150 has an installation rating of 150 VA and features three individually controllable cable inputs. Using a Bluetooth Low Energy connection, this transformer can control the three cables individually via the in-lite app.
Specs
Art. nr.
10500610
EAN code
8717051004834
Height (inch)
3.1496
Height (mm)
80
IP class
23
Length (inch)
9.0551
Length (mm)
230
Order unit
1
Power [W]
150
Article group
Transformers
Voltage
120 volt
VA value
150
Width (inch)
5.5118
Width (mm)
140
Installation instructions
Installation advice
<p>Mount vertically using the screws provided. The transformer can be hung on a wall both indoors and outdoors. Outdoors, the transformer must be mounted at least 50 cm from the ground and free of precipitation.</p>
<p>Please read the manual for detailed instructions. For installation of our system and fixtures, watch the instructional videos on the installation tips page.</p>
