EVO FLEX PROFILE
EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.

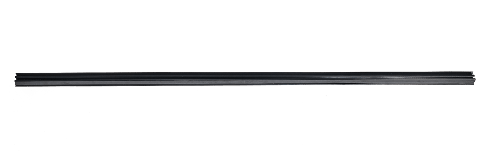

This is a straight surface mount profile with a length of 101 cm for mounting EVO FLEX. This profile contains an extra gutter so you can neatly hide the cable. For easy installation under steps, pond edges or roof overhangs. Combine with other EVO FLEX accessories for perfect mounting.
This is a straight surface mount profile with a length of 101 cm for mounting EVO FLEX. This profile contains an extra gutter so you can neatly hide the cable. For easy installation under steps, pond edges or roof overhangs. Combine with other EVO FLEX accessories for perfect mounting.
- Makes assembly of EVO FLEX easy
- Applicable for all (SMART) EVO FLEX fixtures
- Easy to combine with other EVO FLEX accessories
Installation advice:
Look carefully at which profile best suits the application
Art. nr.
10250351
Product overview
Product Details
EVO FLEX PROFILE is designed to fit EVO FLEX 1, 2, 3 and SMART EVO FLEX TONE 1, 2 and 5. Combine with other EVO FLEX accessories for the perfect assembly. A total of 4 profiles are available, each with its own application. See installation advice for more information on all profiles. Combine with other EVO FLEX accessories for the perfect installation.
Specs
Art. nr.
10250351
Application
Stairs
EAN code
8717051005770
Height (inch)
0.7087
Height (mm)
18
Length (inch)
39.7638
Length (mm)
1010
Light direction
Downwards
Order unit
6
Processing
Concrete, Natural stone, Wood
Article group
Related products
Width (inch)
1.0236
Width (mm)
26
Installation instructions
Installation advice
<strong>EVO FLEX PROFILE 1 and 2</strong><br />
When mounting EVO FLEX PROFILE 1, 2 and 3 it is recommended to use mounting sealant. The profile can then (if possible) be fixed with screws to allow the sealant to harden. Screw holes have been prepared for this purpose. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.<br />
<br />
<strong>PROFILE 3</strong><br />
For mounting EVO FLEX PROFILE 1, 2 and 3, it is recommended to use mounting sealant. If required, EVO FLEX PROFILE can be cut to size. The sealant must be suitable for outdoor applications and must be UV and weather resistant. It is required that the sealant has a high initial adhesion and is permanently elastic after curing.<br />
<br />
<strong>PROFILE 4</strong><br />
The profile can be mounted using screws (not supplied). Screw holes have been prepared for this purpose.
