    TOUCH DIMMER
    Product
    Included
    Product overview
    Back to the overview
    Pinch to zoom
    Enlarge image
    12V dimmer with Human Dimming

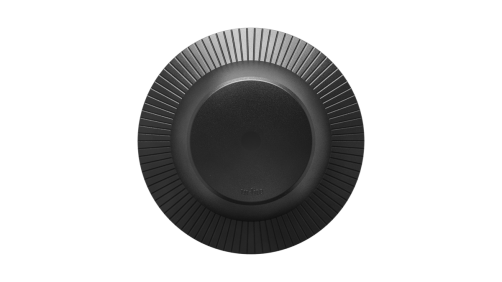

    TOUCH DIMMER

    Be the first to review this product
    Easily dim your 12V wall, ceiling and pendant lamps? You can with the TOUCH DIMMER. The connected outdoor lighting is dimmable in five settings. The fixtures you connect to the TOUCH DIMMER can be controlled separately from the rest of the garden. You do not need a SMART system for this dimmer. It is also possible to extend up to 4 meters. Read more about this in the installation advice.
    • All 12V wall, ceiling and pendant lamps dimmable
    • Dimming up to three outdoor lights simultaneously
    • No Smart system required
    Installation advice:

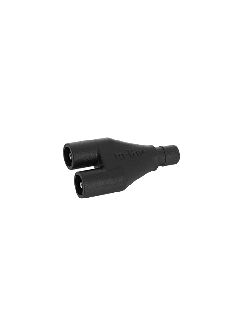

    Use SPLITTER or TRIPLE SPLITTER to connect multiple fixtures.

    Art. nr.
    10500750

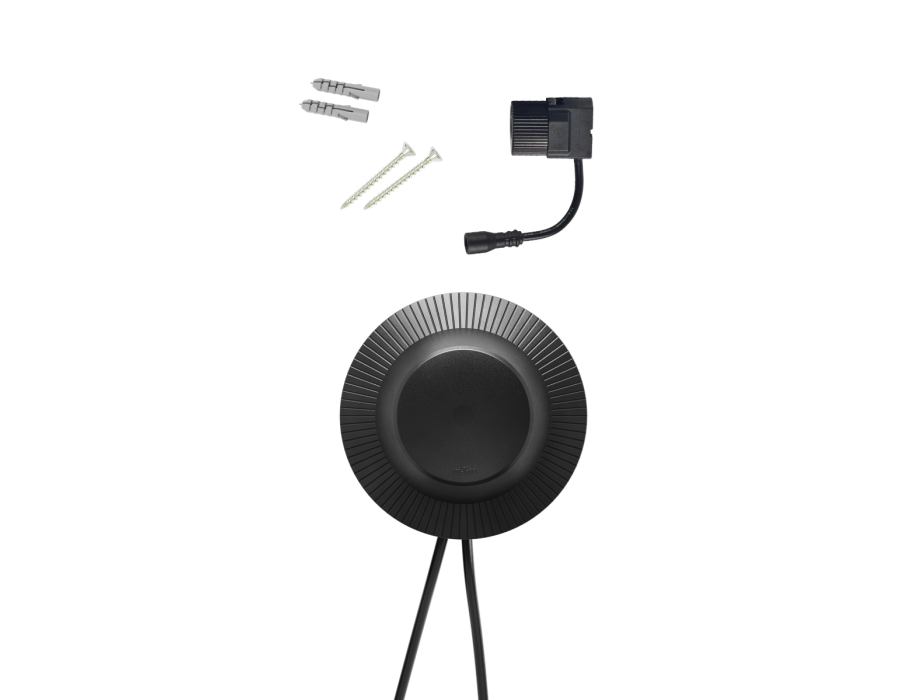

    IN THE PACKAGE
    INCLUDED IN PACKAGE

    • TOUCH DIMMER
    • 2x pluggen
    • 2x schroeven
    Product overview
    Product Details
    Want to effortlessly adjust the intensity of your wall, ceiling and pendant lights? Then discover TOUCH DIMMER. This handy accessory lets you dim each outdoor light individually and choose from five different modes. Best of all? TOUCH DIMMER does not require a SMART system, putting ease of operation at your fingertips.

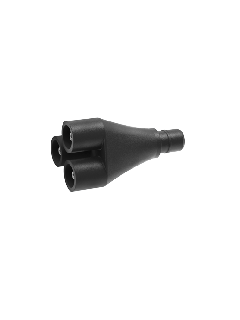

    Up to three outdoor lights can be connected to the dimmer. This is through the use of the TRIPLE SPLITTER.

    TOUCH DIMMER can only be used when there is power on the line.

    Specs

    Art. nr.
    10500750
    Application
    Facade, Fence, House, Patio roof
    Diameter (inch)
    3.8976
    Diameter (mm)
    99
    EAN code
    8717051006500
    Height (inch)
    1.2598
    Height (mm)
    32
    Order unit
    6
    Article group
    Related products

    Installation instructions

    Installation advice
    To properly use TOUCH DIMMER, place the accessory between the EASY-LOCK and the outdoor light to be dimmed. You easily attach the TOUCH DIMMER to the wall with the back plate and a screw. You then click the TOUCH DIMMER onto the back plate. When the blue light is on, the accessory has been installed correctly. <br /><br /> Use SPLITTER or TRIPLE SPLITTER to connect multiple fixtures. With a max of 3 fixtures. <br /><br /> It is possible to extend 4 meters between EASY-LOCK and TOUCH DIMMER and between TOUCH DIMMER and the fixtures.
    MANUAL_TOUCH-DIMMER.pdf
