Wall light - ↔ 200mm/7.87"

WEDGE SLIM

The WEDGE SLIM DARK is a slim wall fixture with a wide light beam that is perfect for use as directional lighting on, for example, low walls or along driveways or paths.The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.Tip: Think of an extension cable
  • Produces a wide and attractive downward light
  • Designed for illuminating a low fence or wall
  • Available in three sizes
Installation advice:

A WEDGE SLIM every 2 to 2½ meters at a height of 1 to 1.6 meters

Art. nr.
10301770

IN THE PACKAGE
INCLUDED IN PACKAGE

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • 2x Screw
  • 2x Nylon plug
  • 1x Torx wrench

Product overview
Product Details
The WEDGE SLIM DARK is a slim wall fixture with a wide light beam that is perfect for use as directional lighting on, for example, low walls or along driveways or paths.

Specs

Art. nr.
10301770
Application
Facade, Fence, Patio roof
CRI
96
Color
Dark Grey
EAN code
8717051004001
Energy label
G
Height (inch)
1.9685
Height (mm)
50
IP class
55
Length (inch)
1.378
Length (mm)
35
Light direction
Downwards
Light type
Direct
Efficiency (Lumen/Watt)
36
Net luminous flux (Lumen)
36
Order unit
6
Power [W]
1
Article group
Wall
Voltage
12 volt
VA value
1

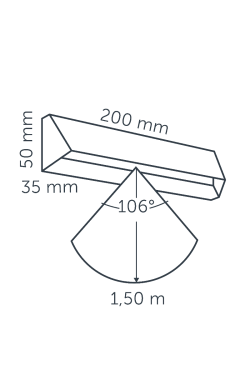

Width (inch)
7.874
Width (mm)
200
Color temperature
2800
Luminous intensity [Cd]
16.7
Power factor
1

Installation instructions

Installation advice
Simple mounting with supplied screws and plugs. Preferably mount the wall fixture below eye level (maximum height about 1.50m), otherwise there is too much insight into the light source.
