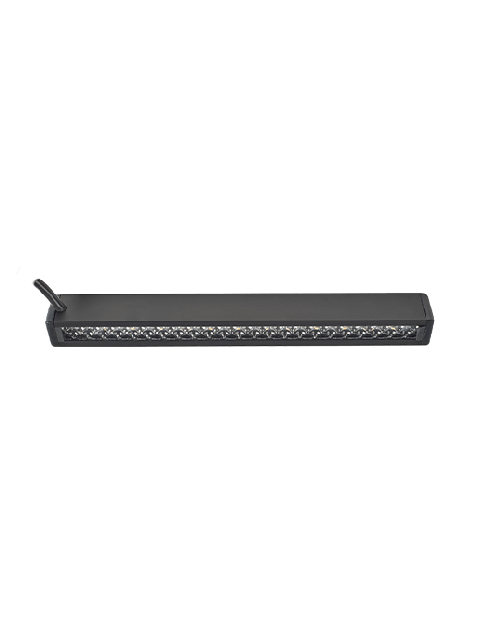

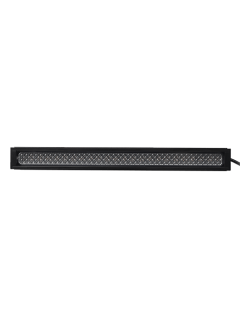

EVO HYDE 180
You place EVO HYDE's indirect line lighting under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional.
The EASY-LOCK is included as standard with this luminaire. The cable length on this fitting is 60 cm.
The EASY-LOCK is included as standard with this luminaire. The cable length on this fitting is 60 cm.
- Produces a wide, subtle light
- Suitable for installation under stairs and pond edges
- Available in two sizes
Installation advice:
Install the EVO HYDE under an overhang of at least 5 to 6 centimeters
In stock
Art. nr.
10250200

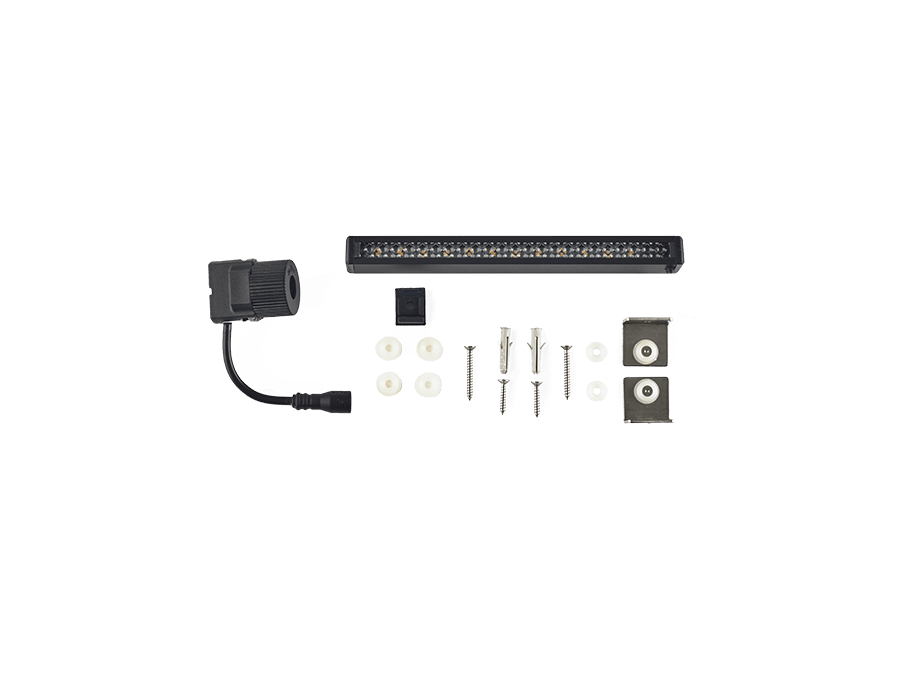

IN THE PACKAGE
INCLUDED IN PACKAGE
- 1x EASY LOCK
- 60 cm Fixture cable
- 2x Nylon plug
- 4X Screw
- 2x Mounting plate for overhang
- 2x Large cable cap
- 2x Small cable cap
Product overview
Product Details
You place EVO HYDE's indirect line lighting under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional. Depending on the distance you want to bridge, choose the short EVO HYDE 180 or long EVO HYDE 550. You can also place several EVO HYDE luminaires next to each other. Go for premium quality with our special EVO line. EVO products (EVO stands for evo-lution) have a modern, sleek design and are finished in dark grey anodised aluminium. Thanks to the high-quality LED light source and lens with diamond cut structure, EVO outdoor luminaires provide a beautifully diffuse light image with excellent colour rendering (CRI).
Specs
Art. nr.
10250200
Application
Stairs
CRI
93
Color
Black
EAN code
8717051003974
Energy label
G

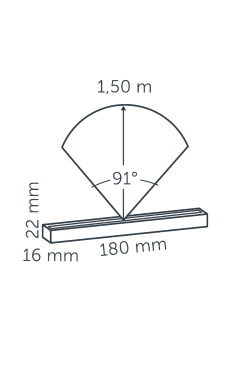

Height (inch)
0.8661
Height (mm)
22
IP class
55
Length (inch)
7.0866
Length (mm)
180
Light type
Indirect
Efficiency (Lumen/Watt)
50
Net luminous flux (Lumen)
25
Order unit
6
Power [W]
0.5
Processing
Concrete, NaturalStone, Wood
Article group
Surface
Voltage
12V
VA value
0.6
Width (inch)
0.6299
Width (mm)
16
Color temperature
2950
Luminous intensity [Cd]
16
Power factor
0.83
Installation instructions
Installation advice
Mounting with the screws and plugs included. To learn how to install the in-lite system, watch the instruction videos on the ‘Installation tips’ page.
