    Transformers

    The in-lite system operates at 12 volts (low voltage). This means that the 230 volts of power from the socket is converted to 12 volts by a transformer. This is a safe voltage, making in-lite lighting easy to connect and reposition by the consumer.



    Shop By
    Shopping Options Close filtering
    Category
    • Transformers
    • Cables
    • Accessories
    Color
    Dimmable
    1. Yes 2 items
    2. No 2 items

    4Items

    1. 1615_10500602_4.png 1615_10500602_4.png
      gesture swiping hand
      Add to Wish List
      SMART HUB-150
      SMART Transformer for 150VA
      Go to store locator
    2. 3274_il_smarthub300_front1.png
      Add to Wish List
      SMART HUB-300
      Connected load 300VA
      Go to store locator
    3. 6397_smart-hub-75_1.png
      Add to Wish List

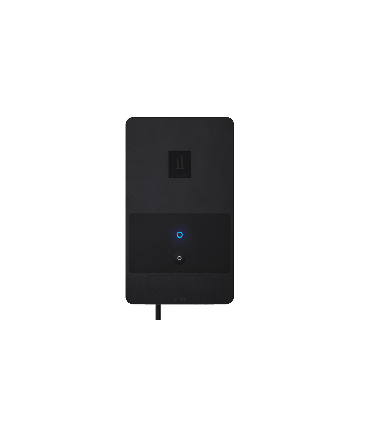

      SMART HUB-75 UK
      Smart transformer for 75 VA
      Go to store locator
    4. 6395_hub-75_1.png
      Add to Wish List

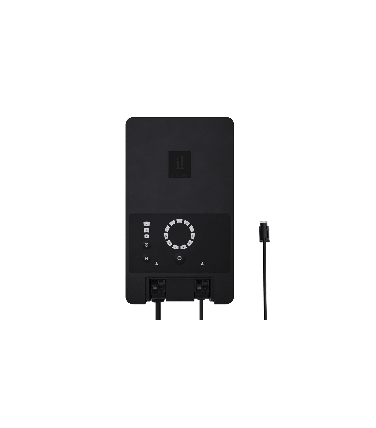

      HUB-75 UK
      Transformer for 75 VA
      Go to store locator

    4Items

    HUB-75 & SMART HUB-75

    The HUB-75 and SMART HUB-75 are the standard transformers in our range. Both transformers can handle 75 VA, distributed over two cable outputs. Note: only the SMART HUB-75 can be controlled via the in-lite App; on the HUB-75, the outputs cannot be switched independently.

    More HUB-75
    SMART HUB-150

    The SMART HUB-150 is operated using the in-lite app. You can connect up to 150VA in fixtures to the transformer, divided over three cable outlets if desired, each of which can be operated separately.

    More SMART HUB-150

    Protect your transformer

    We recommend installing your SMART HUB-150, HUB-75 or SMART HUB-75 in a covered location. If this isn’t possible, use a PROTECTOR to shield your transformer from all forms of precipitation. Our PROTECTORs are made of high-quality plastic and can withstand any weather conditions.


    HUB protector - in-lite
      HUB-75   SMART HUB-75 SMART HUB-150 SMART HUB-300
    Max. connection value 75 VA   75V A 150 VA 300 VA
    Control Buttons   App App App
    Cable outlets 2 lines   2 lines 3 lines 3 lines
    Max. connection value per cable outlet 75 VA   75 VA 100 VA 130 VA
    Cables can be controlled separately ×    √  √  √
    Suitable for Smart fixtures ×    √  √  √
    Suitable for home Automation systems ×    √  √  √
    Max. cable length 14/2 40 m   40 m 40 m ×
    Max. cable length 10/2 80 m   80 m 80 m 160 m



      HUB-75 SMART HUB-75 SMART HUB-150 SMART HUB-300
    Max. connection value 75 VA 75 VA 150 VA 300 VA
    Control Buttons App App App
    Cable outlets 2 lines 2 lines 3 lines 3 lines
    Max. connection value per cable outlet 75 VA 75 VA 100 VA 130 VA
    Cables can be controlled separately × √ √ √
    Suitable for Smart fixtures × √ √ √
    Suitable for home automation systems × √ √ √
    Max. cable length 14/2 40 m 40 m 40 m ×
    Max. cable length 10/2 80 m 80 m 80 m 160 m
      HUB-50 HUB-100 SMART HUB-150
    Max. permitted voltage 50 VA 100 VA 150 VA
    Operation method Touchscreen Touchscreen in-lite app
    No. of ground cables (lines) 2 lines 2 lines 3 lines
    Separate line operation × × √
    Manual on/off √ √ √ (d.m.v. in-lite app)
    Day/night switch √ (light sensor) √ (light sensor) √ (astronomical clock)
    Timer function √ (hours on) √ (hours on) √ (minutes on)
    Motion detector MOVE (wired) MOVE (wired) SMART MOVE (wireless)
    Overload short circuit notification √ √ √
    Installation outdoor possible √ at >50cm √ at >50cm √ at >50cm
