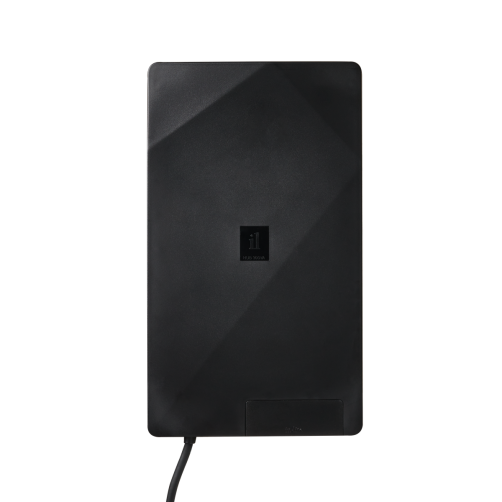

SMART HUB-300 has an installation rating of 300VA and features three individually controllable cable entries. This is the smart transformer perfect for any in-lite professional who designs and creates large outdoor spaces.
UNIQUE PROPERTIES
- Maximum output of 300VA
- Maximum output per line 130VA
- Three cables individually controlled via the in-lite app
- Maximum cable length 160M
- Use 10/2 cable
- The best Bluetooth signal
Caution!
Do not connect DB-LED, HYVE (22) or FUSION (22) luminaires to the SMART HUB-300. Use DOT and DOT 22 for these.
UNIQUE PROPERTIES
- Maximum output of 300VA
- Maximum output per line 130VA
- Three cables individually controlled via the in-lite app
- Maximum cable length 160M
- Use 10/2 cable
- The best Bluetooth signal
Caution!
Do not connect DB-LED, HYVE (22) or FUSION (22) luminaires to the SMART HUB-300. Use DOT and DOT 22 for these.
- Control by means of Bluetooth Low Energy and the in-lite app for iOS and Android
- Three cable inputs and control per cable is possible
- Tested and certified in accordance with the requirements of TUV, (C)UL and KIWA (CE)
Installation advice:
Indoor mounting. For outdoor mounting SMART PROTECTOR 2.
In stock
Art. nr.
10500620
in stock, delivered within 3 working days
Product overview
Product Details
In recent years, we have made many strides towards being able to attractively light even the largest gardens. SMART HUB-300, the smart transformer that is perfect for every in-lite professional who designs and creates large outdoor spaces.
Please note!
Do not connect DB-LED, HYVE (22) or FUSION (22) luminaires to the SMART HUB-300. Use DOT and DOT 22 for these.
Please note!
Do not connect DB-LED, HYVE (22) or FUSION (22) luminaires to the SMART HUB-300. Use DOT and DOT 22 for these.
Specs
Art. nr.
10500620
Color
Black
EAN code
8717051005411
Height (inch)
2.3622
Height (mm)
60
IP class
23
Length (inch)
12.9921
Length (mm)
330
Power [W]
300
Article group
Transformers
Voltage
230 volt
VA value
300
Width (inch)
7.4803
Width (mm)
190
Installation instructions
Installation advice
Mount vertically using the screws provided. The transformer can be hung on a wall indoors or outdoors. Outdoors, the transformer must be mounted at least 50 cm from the ground and free of precipitation.
<br /><br />
<strong>Note!</strong><br />
Do not connect DB-LED, HYVE (22) or FUSION (22) luminaires to the SMART HUB-300. Use DOT and DOT 22 for these.
<br /><br />
Read the manual for detailed instructions.
