    Transformers

    The in-lite system operates at 12 volts (low voltage). This means that the 230 volts of power from the socket is converted to 12 volts by a transformer. This is a safe voltage, making in-lite lighting easy to connect and reposition by the consumer.



    Shop By
    Shopping Options Close filtering
    Category
    • Transformers
    • Cables
    • Accessories
    Color
    Dimmable
    1. Yes 2 items
    2. No 2 items

    4Items

    1. 1615_10500602_4.png 1615_10500602_4.png
      gesture swiping hand
      Add to Wish List

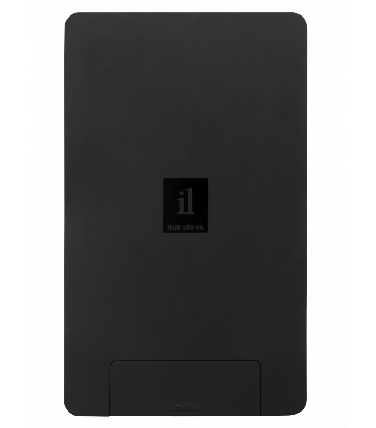

      SMART HUB-150
      SMART Transformer for 150VA
      Go to store locator
    2. 3274_il_smarthub300_front1.png
      Add to Wish List
      SMART HUB-300
      Connected load 300VA
      Go to store locator
    3. 6395_hub-75_1.png
      Add to Wish List
      HUB-75
      Transformer for 75 VA
      Go to store locator
    4. 6397_smart-hub-75_1.png
      Add to Wish List
      SMART HUB-75
      Smart transformer for 75 VA
      Go to store locator

    4Items

    HUB-75 & SMART HUB-75

    The HUB-75 and SMART HUB-75 are the standard transformers in our range. Both transformers can handle 75 VA, distributed over two cable outputs. Note: only the SMART HUB-75 can be controlled via the in-lite App; on the HUB-75, the outputs cannot be switched independently.

    More HUB-75
    SMART HUB-150

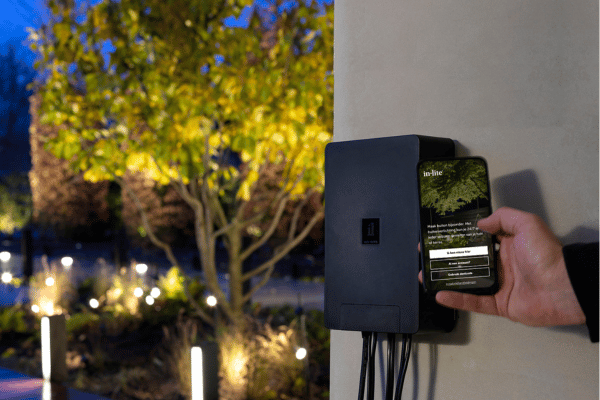

    The SMART HUB-150 is operated using the in-lite app. You can connect up to 150VA in fixtures to the transformer, divided over three cable outlets if desired, each of which can be operated separately.

    More SMART HUB-150
    HUB-75 & SMART HUB-75

    HUB-75 and SMART HUB-75 are the standard transformers in our range. Both transformers can handle 75 VA, divided over two cable outputs. Note: only the SMART HUB-75 can be controlled via the in-lite App; on the HUB-75, the outputs cannot be switched independently.">More on HUB-75 & SMART HUB-75

    SMART HUB-150

    The SMART HUB-150 is operated using the in-lite app. You can connect up to 150VA in fixtures to the transformer, divided over three cable outlets if desired, each of which can be operated separately.

    More on SMART HUB-150
      HUB-75   SMART HUB-75 SMART HUB-150 SMART HUB-300
    Max. connection value 75VA   75VA 150VA 300VA
    Control Buttons   App App App
    Cable outlets 2 lines   2 lines 3 lines 3 lines
    Max. connection value per cable outlet 75 VA   75 VA 100 VA 130 VA
    Cables can be controlled separately ×    √  √  √
    Suitable for Smart fixtures ×    √  √  √
    Suitable for home Automation systems ×    √  √  √
    Max. cable length 14/2 40 m   40 m 40 m ×
    Max. cable length 10/2 80 m   80 m 80 m 160 m



      HUB-75 SMART HUB-75 SMART HUB-150 SMART HUB-300
    Max. connection value 75 VA 75 VA 150 VA 300 VA
    Control Buttons App App App
    Cable outlets 2 lines 2 lines 3 lines 3 lines
    Max. connection value per cable outlet 75 VA 75 VA 100 VA 130 VA
    Cables can be controlled separately × √ √ √
    Suitable for Smart fixtures × √ √ √
    Suitable for home automation systems × √ √ √
    Max. cable length 14/2 40 m 40 m 40 m ×
    Max. cable length 10/2 80 m 80 m 80 m 160 m
      HUB-50 HUB-100 SMART HUB-150
    Max. permitted voltage 50 VA 100 VA 150 VA
    Operation method Touchscreen Touchscreen in-lite app
    No. of ground cables (lines) 2 lines 2 lines 3 lines
    Separate line operation × × √
    Manual on/off √ √ √ (d.m.v. in-lite app)
    Day/night switch √ (light sensor) √ (light sensor) √ (astronomical clock)
    Timer function √ (hours on) √ (hours on) √ (minutes on)
    Motion detector MOVE (wired) MOVE (wired) SMART MOVE (wireless)
    Overload short circuit notification √ √ √
    Installation outdoor possible √ at >50cm √ at >50cm √ at >50cm
