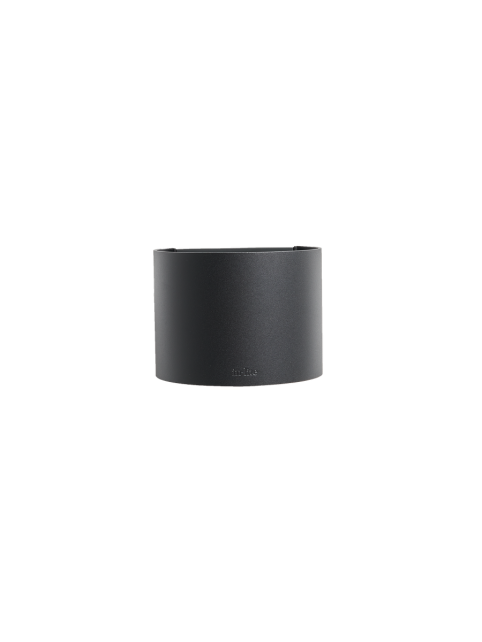

HALO UP-DOWN 100-230V
HALO UP-DOWN 100-230V is an elegant and robust dimmable wall light with a sleek and wide light display on walls and diffuse light display both upward and downward for added ambiance. The fixture can only be connected to the power supply.
- Produces a focused upward and downward light
- Designed for illuminating an outside wall
- Connects directly to 230 volt
Installation advice:
A HALO UP-DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters
In stock
Art. nr.
10302610
Product overview
Product Details
HALO UP-DOWN 100-230V is an elegant and robust wall light with a sleek and wide light display on walls and diffuse light display both upward and downward for added ambiance. This fixture can only be connected to the power supply, making it suitable for use on house walls, garages and storage sheds. HALO UP-DOWN 100-230V is technically designed so that it can be connected to a dimmer*. The beam of light can also be adjusted widthwise using the separately available SHUTTER 2. This makes it possible to adapt the lighting/ambiance produced by the HALO 100-230V wall light as desired. This wall light is part of the HALO series and also available as a 12 volt version.
*In accordance with the technical specifications in the manual.
Specs
Art. nr.
10302610
Application
Fassade, Haus , Vordach , Zaun/Mauer
CRI
92

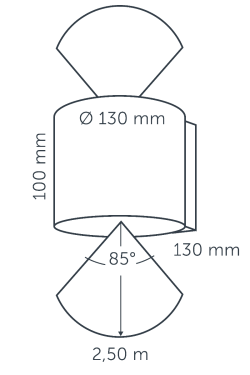

Diameter (inch)
5.1181
Diameter (mm)
130
Color
Black
EAN code
8717051004315
Energy label
G
Height (inch)
3.937
Height (mm)
100
IP class
55
Length (inch)
5.1181
Length (mm)
130
Light direction
Nach unten und oben
Light type
Direkt
Efficiency (Lumen/Watt)
41
Net luminous flux (Lumen)
346
Order unit
6
Power [W]
8.4
Article group
Wall
Voltage
230 volt
VA value
20
Width (inch)
5.1181
Width (mm)
130
Color temperature
3000
Luminous intensity [Cd]
206.5
Power factor
0.43
Installation instructions
Installation advice
HALO UP-DOWN 100-230V may only be installed by a certified electrician. The dimmer to be connected must comply with the specified technical guidelines in the manual (for example, a dimmer with phase cut and a power of 3 to 100 watts, read more here).
