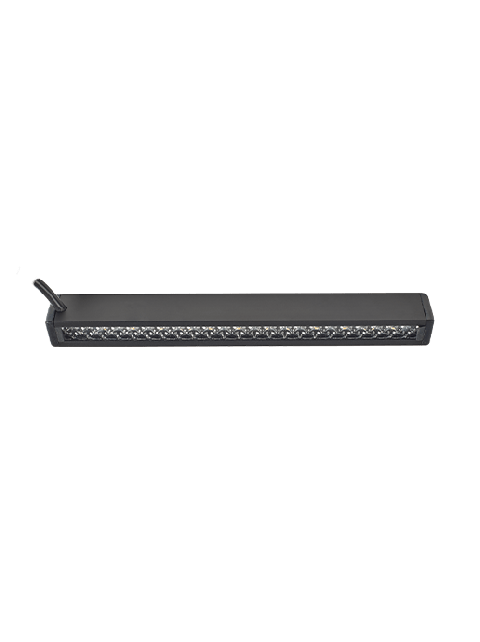

EVO HYDE 180C
EVO HYDE's indirect line lighting is placed under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional. The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.
- Produces a wide, subtle light
- Suitable for installation under stairs and pond edges
- Available in two sizes
Installation advice:
Install the EVO HYDE under an overhang of at least 5 to 6 centimeters
Art. nr.
10250105

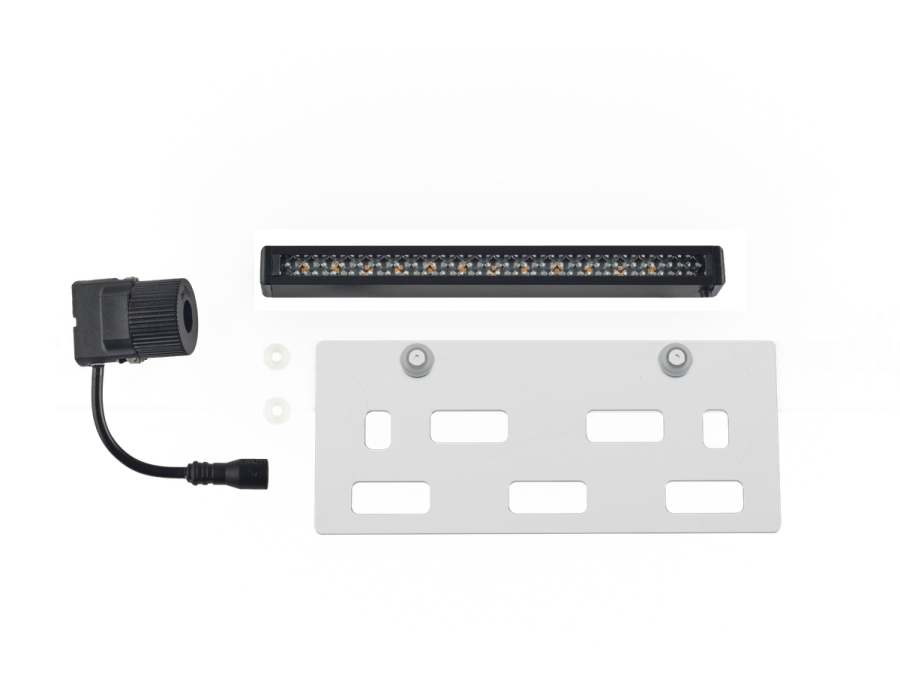

IN THE PACKAGE
INCLUDED IN PACKAGE
- EVO HYDE 180C
- EASY LOCK
- 60 cm fixture cable
- Mounting rings
- FIX 3
Product overview
Product Details
EVO HYDE's indirect line lighting is placed under steps, decking, balustrades and (seating) walls. The lighting effect is special and functional. Depending on the distance you want to bridge, you choose the short EVO HYDE 180 or long EVO HYDE 550. You can also place several EVO HYDE fixtures next to each other.Go for premium quality with our special EVO line. EVO products (EVO stands for evo-lution) have a modern, sleek design and are finished in dark gray anodized aluminum. Thanks to the high-quality LED light source and lens with diamond cut structure, EVO outdoor lights provide a beautiful diffused light image with excellent color rendering (CRI).
Specs
Art. nr.
10250105
Application
Trap
CRI
93
Color
Black
EAN code
8717051004209

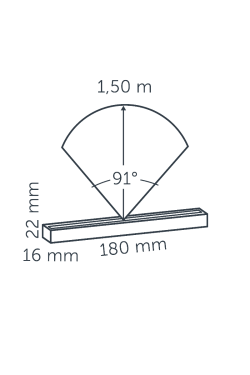

Height (inch)
0.8661
Height (mm)
22
IP class
55
Length (inch)
7.0866
Length (mm)
180
Light type
Indirect
Efficiency (Lumen/Watt)
50
Net luminous flux (Lumen)
25
Order unit
6
Power [W]
0.5
Processing
Concrete, Natural stone, Wood
Article group
Surface
Voltage
12 volt
VA value
0.6
Width (inch)
0.6299
Width (mm)
16
Color temperature
2950
Kilowatt hour
1
Luminous intensity [Cd]
16
Power factor
0,83
Installation instructions
Installation advice
Mounting with the screws and plugs included. To learn how to install the in-lite system, watch the instruction videos on the ‘Installation tips’ page.
