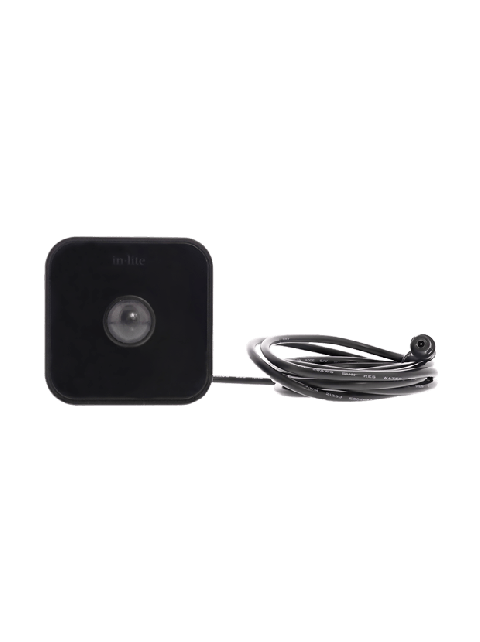

High-quality motion detector for use with the HUB-50 & HUB-100 transformers.
  • Wired motion detector for HUB-50 and HUB-100
  • Detects up to 12 meters
  • Adjustable for 1, 3 or 9 minutes
Installation advice:

Place the MOVE flat against a hard surface at a height of 1.8 to 2 meters

In stock
Art. nr.
10500705
Product overview
Product Details
MOVE detects movement up to 10 meters at an vertical angle of 40 degrees and horizontal angle of 105 degrees.Features the following functions and properties:Lighting switches on for 1, 3 or 9 minutesOperated with the ‘Motion Detection' button on the transformerEasy to connect to the transformer using an RCA connectorEquipped with a two-meter cable that can be extended to 20 meters using the MOVE EXT-CORD 5MTR (available separately)

Specs

Art. nr.
10500705
EAN code
8717051004384
Height (inch)
1.7717
Height (mm)
45
Length (inch)
3.1496
Length (mm)
80
Order unit
6
Article group
Transformers
Width (inch)
3.1496
Width (mm)
80

Installation instructions

Installation advice
Install vertically using the screws provided. Easy to connect to the transformer using an RCA connector. The various functions of the motion detector are set on the transformer itself. You can also adjust the direction of the motion detector downwards following installation. MOVE is equipped with a two-meter cable. This cable can be extended to up to 20 meters using the MOVE EXT-CORD 5 MTR (available separately). See the manual for detailed instructions. For instructions on installing our system and fixtures, watch the instruction videos on the Installation Tips page.
